Features:

• Built-in front and back handles for easy two-handed carry
• Conforms to EURAMET cg-13 guidance on measurement practices for temperature block calibrators
• All controls and inputs on front panel
• Stability indicator shows whether block temperature is stable and within limits defined by the user PC interface
• USB and RS-232 support remote operation from computer
• Active heater zone control compensates for differential temperatures between zones
• Minimizes axial temperature gradients
• Define up to eight set-point temperatures; automatically ramp to and "soak" at each
• Specify soak time, number of cycles, and direction
• Fast time to temperature and small footprint
• Compact, efficient free piston Stirling cooler technology (FPSC)

Accessories:

• 1 - "A" Insert
• 1 - Power Cord
• 1 - USB Cable
• 1 - User Manual CD
• 1 - 9930 Interface-it Software
• 1 - Report of Calibration
• 1 - Well Insulator
• 1 - Insert Removal Tool
• 4 - Clamp Ferrites

Specifications:

• Temperature range: -95 °C to 140 °C
• Built-in reference thermometer readout accuracy: ± 0.05 °C full range
• Display accuracy: ± 0.2 °C full range
• Stability: ± 0.015 °C full range
• Cooling time: 23 °C to -90 °C: 80 minutes; 23 °C to -95 °C: 90 minutes; 140 °C to 23 °C: 60 minutes

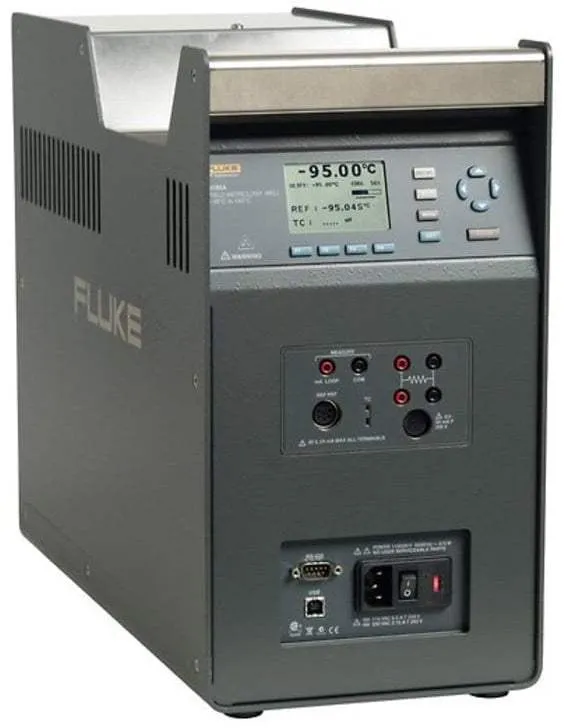

The Fluke Calibration 9190A-B-P-156 Ultra-Cool Field Dry-Block Metrology Temperature Calibrator with Model 9190-INSA ("A" Insert) is the most accurate and stable, cold temperature dry-block on the market. It is ideal for applications that demand strict quality control and regulatory process compliance. These applications include on-location validation and calibration of RTDs, thermocouples, thermometers, and sensors used with process control equipment such as medical freezers, laboratory refrigerators, cold rooms, blood banks, sterilizers (autoclaves), and freeze dryers.
