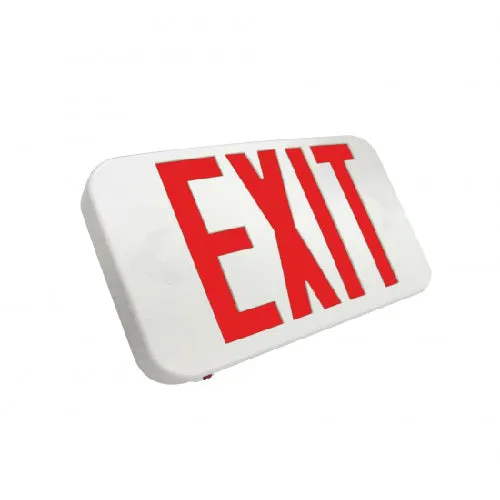

Advantage Environmental Lighting X3U Compact LED Exit Sign

ILLUMINATION

• Ultra bright, energy efficient, long life Red or Green LED.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 1.2V Long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• EZ-snap mounting canopy included for top or end mount.
• Universal K/O pattern on back plate for wall mount.

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
• Aesthetically pleasing, curved face, rounded corner design.
• EZ snap-out chevron directional indicators.

WARRANTY / LISTING

• Five year warranty on all electronics and housing. Battery pro rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0°C – 50°C).
