Description:

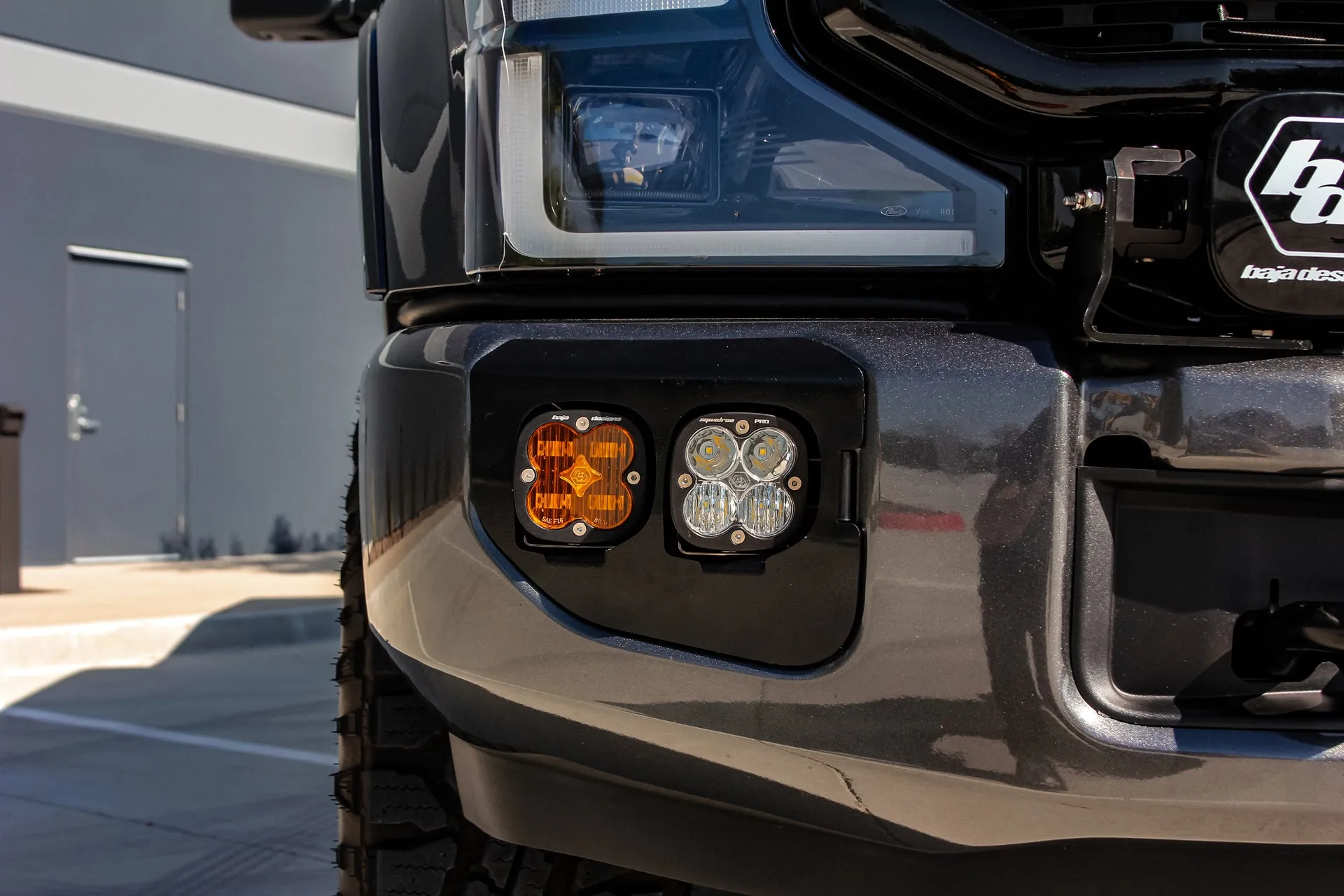

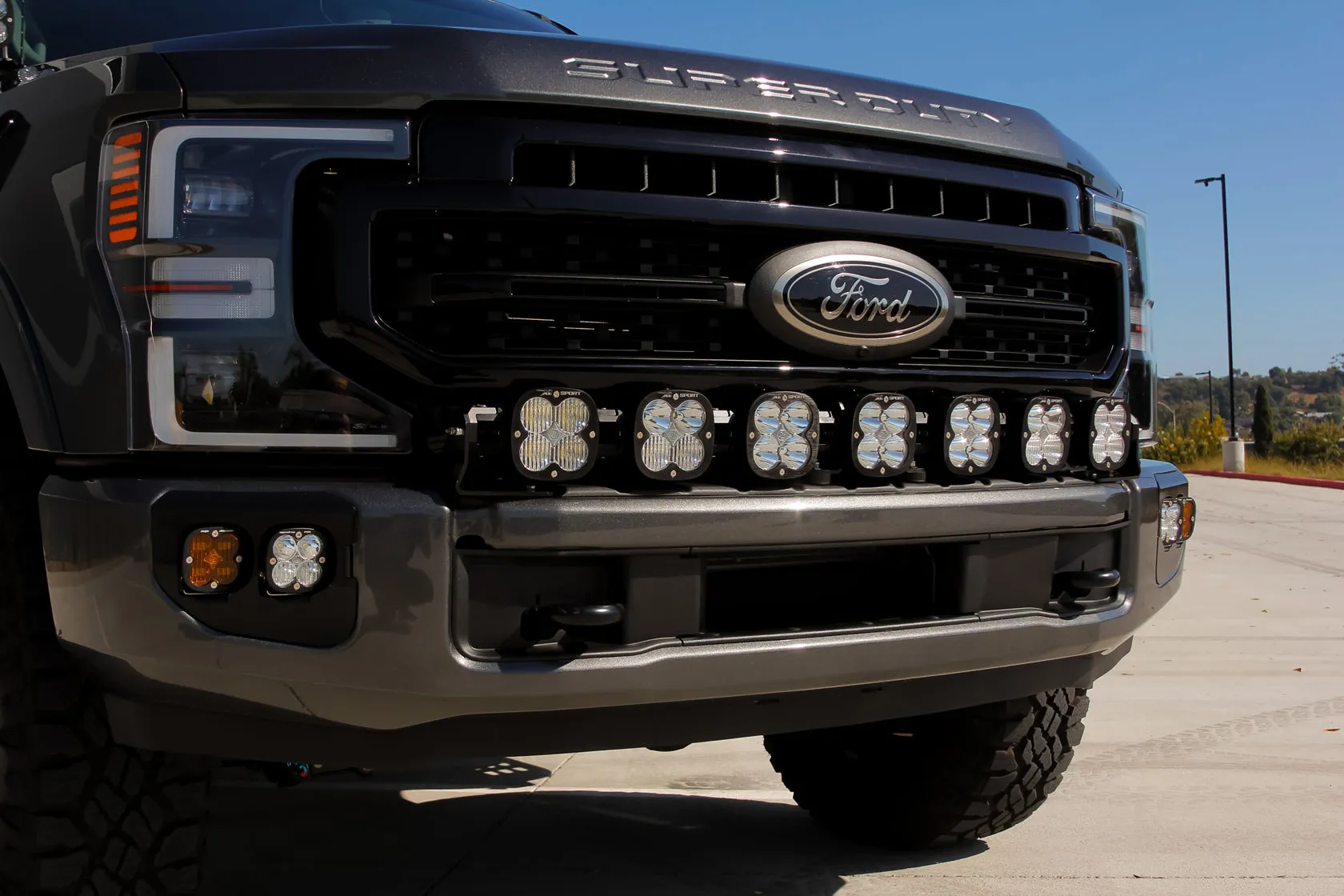

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your Super Duty 20-On! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two Squadron lights on each side. This kit is utilizing our newly released SAE compliant fog lights on the outside, controlled by the factory fog switch, and a pair of driving/combo lights inside, operated by a secondary harness. If you're looking to add not only safety but lighting performance this is your kit!
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
x2 Squadron Pro:
Specifications:
Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
x2 Squadron Sport:
Specifications (per light):
Lumens:3,150 Utilizing 4LEDs
Wattage/Amps:26W / 2A
Dimensions:3.07" x 2.77" x 3.07"
Weight:12 ounces
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware & Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
x2 Squadron SAE:
Specifications (per light):
Lumens: 2,480 Utilizing 4 LEDs
Wattage/Amps:22W / 1.6A
Dimensions:3.07" x 2.77" x 3.07"
Weight:12 ounces
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware & Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

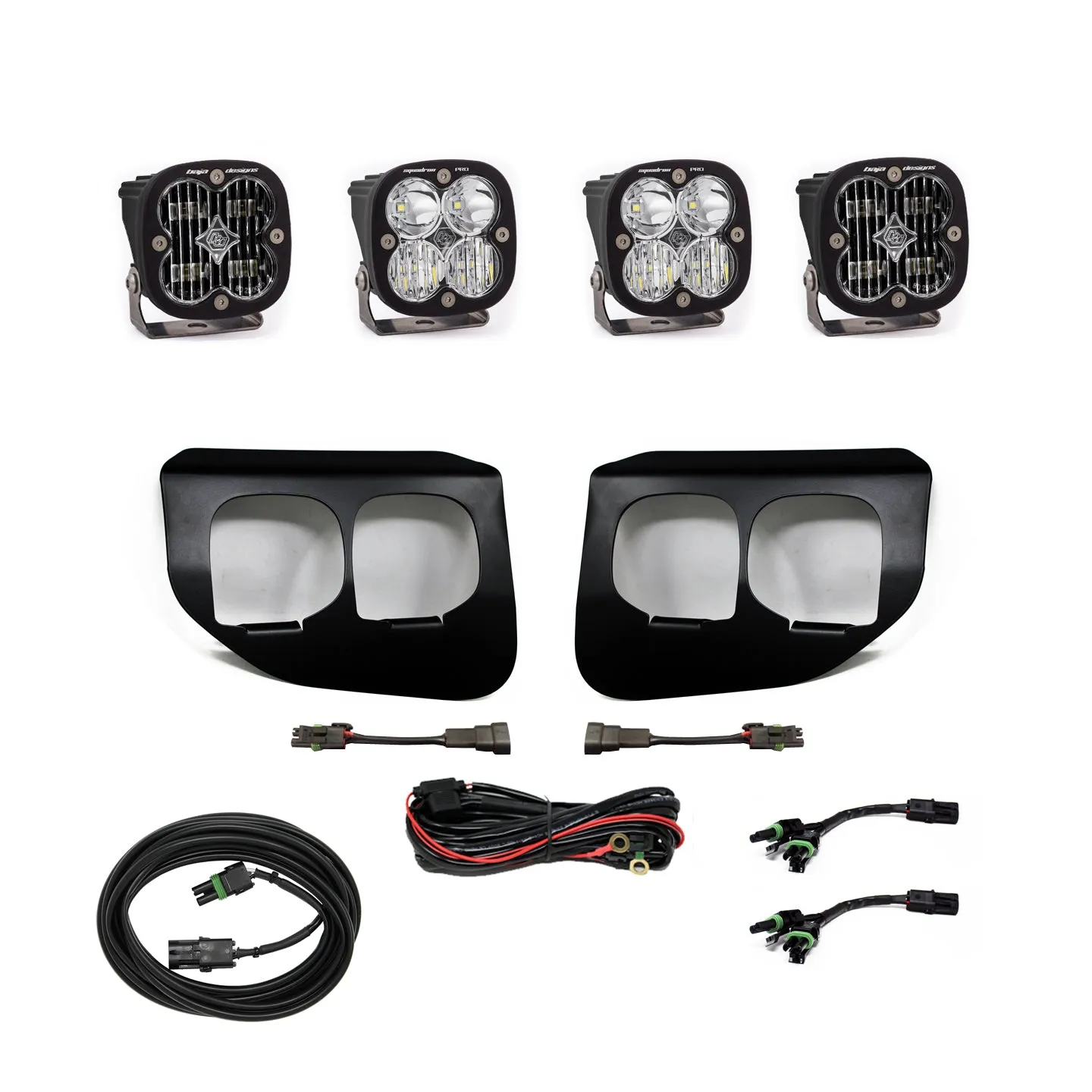

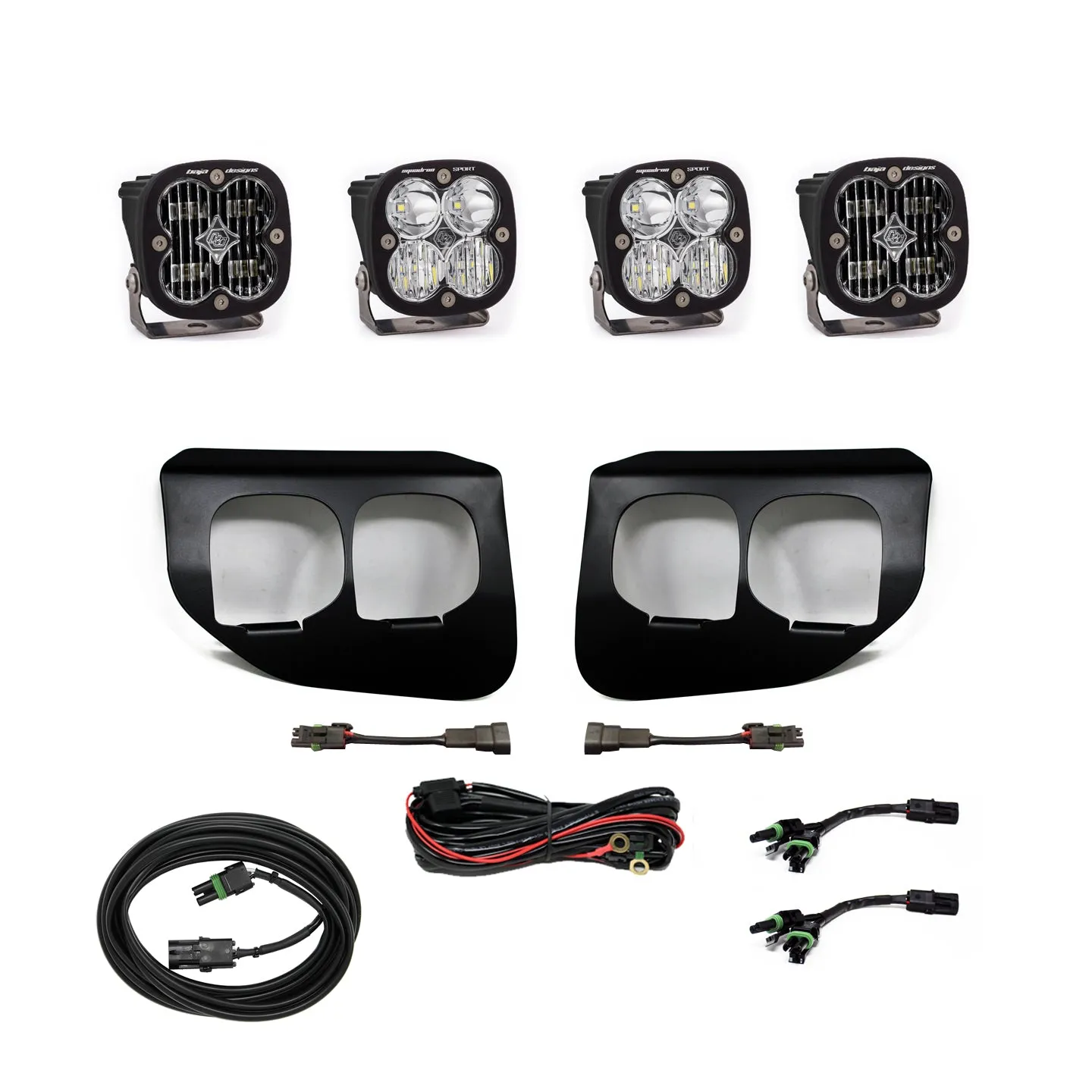

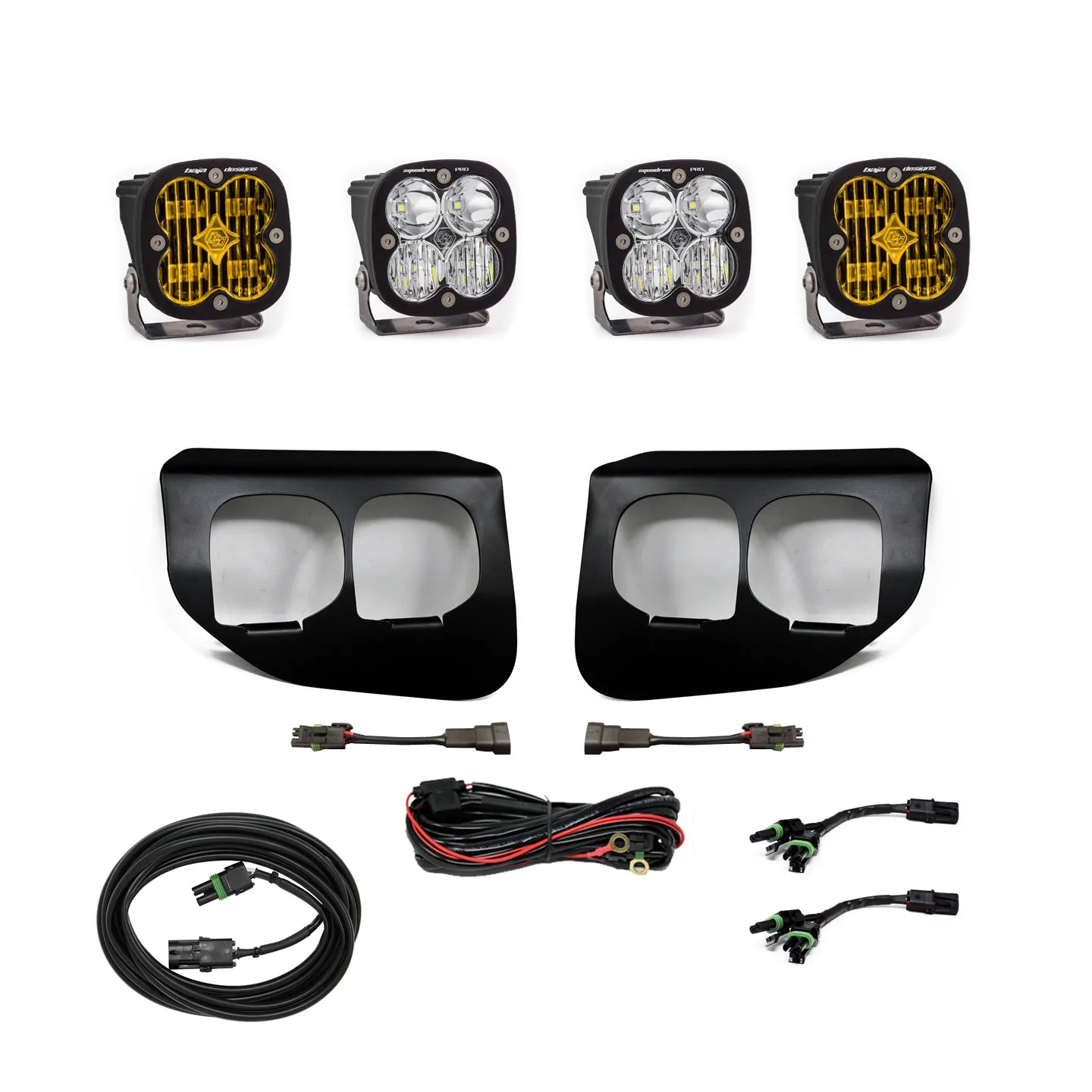

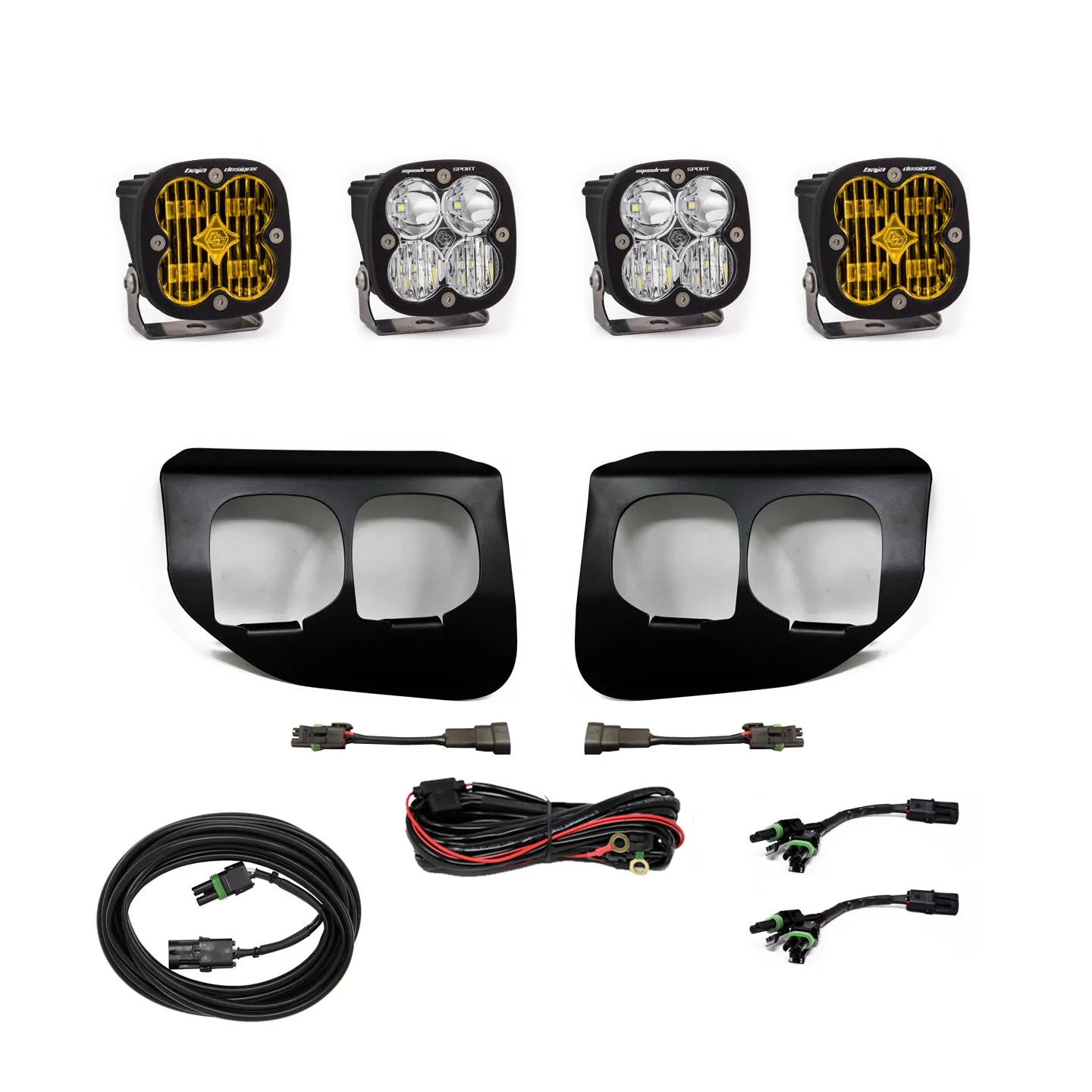

Includes:
- (2) Squadron® SAE LED Lights
- (2) Squadron Sport LED lights
- Mounting Brackets
- Plug and Play Harness
- Wiring Harness
Application:
- Super Duty (20-On)
