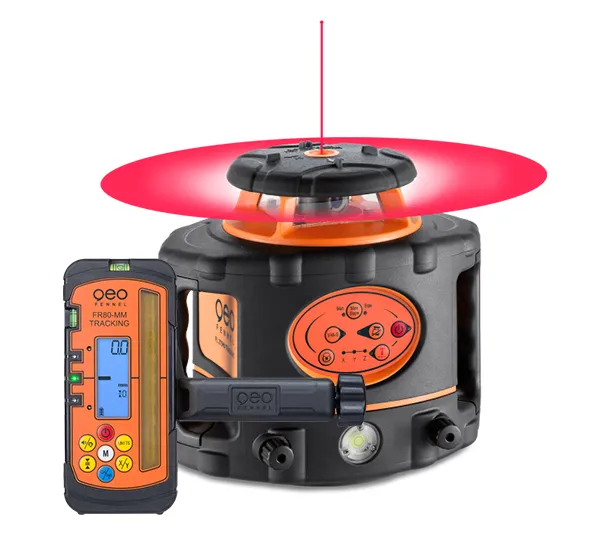

geo-FENNEL FL 275HV Tracking Rotating Laser Level with

The latest generation of precise tracking lasers

• New innovative low friction drive mechanism and self-levelling module
• Accurate, robust and temperature stable
• Low friction drive for reduced noise generation

User-friendly operating concept

• For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
• All additional functions including scanning and slope setting are accessed from the remote control
• TRACKING-Function at the receiver

Improved performance

• Robust remote control with 100 m range

Features

TRACKING function for automatic axis alignment horizontal and vertical

• The laser plane is automatically centred to the   receiver "on-grade"
• Easy one-button operation of TRACKING function
• Working range of TRACKING function 70 m
• mm-indicating receiver

The visible accuracy!

• Vertical: in both X and Y axis
• Horizontal: one axis X or Y, opposite axis self-levelled
• Dust / water protection IP 66
• High accuracy of ± 0,5 mm / 10 m
• Working range 400 m diameter
• Enhanced scanning functions with small increments and a range up to 180°
• Permanent 90° beam for right angles
• Automatic TILT alarm function
• VWS function (Vibration-Wind-Security)
• Auto-shut-off when out of level
• Remote control function on/off: to avoid interference with other remote controls or mobile devices
• Manual slope setting of X and Y axis or auto self-level of opposite axis
• Floor mount with centring mark for accurate set up above a ground point
• Li-Ion battery technology

Includes

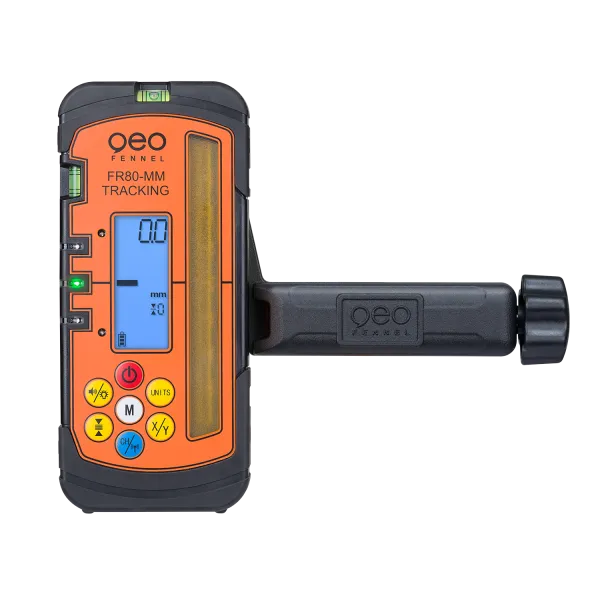

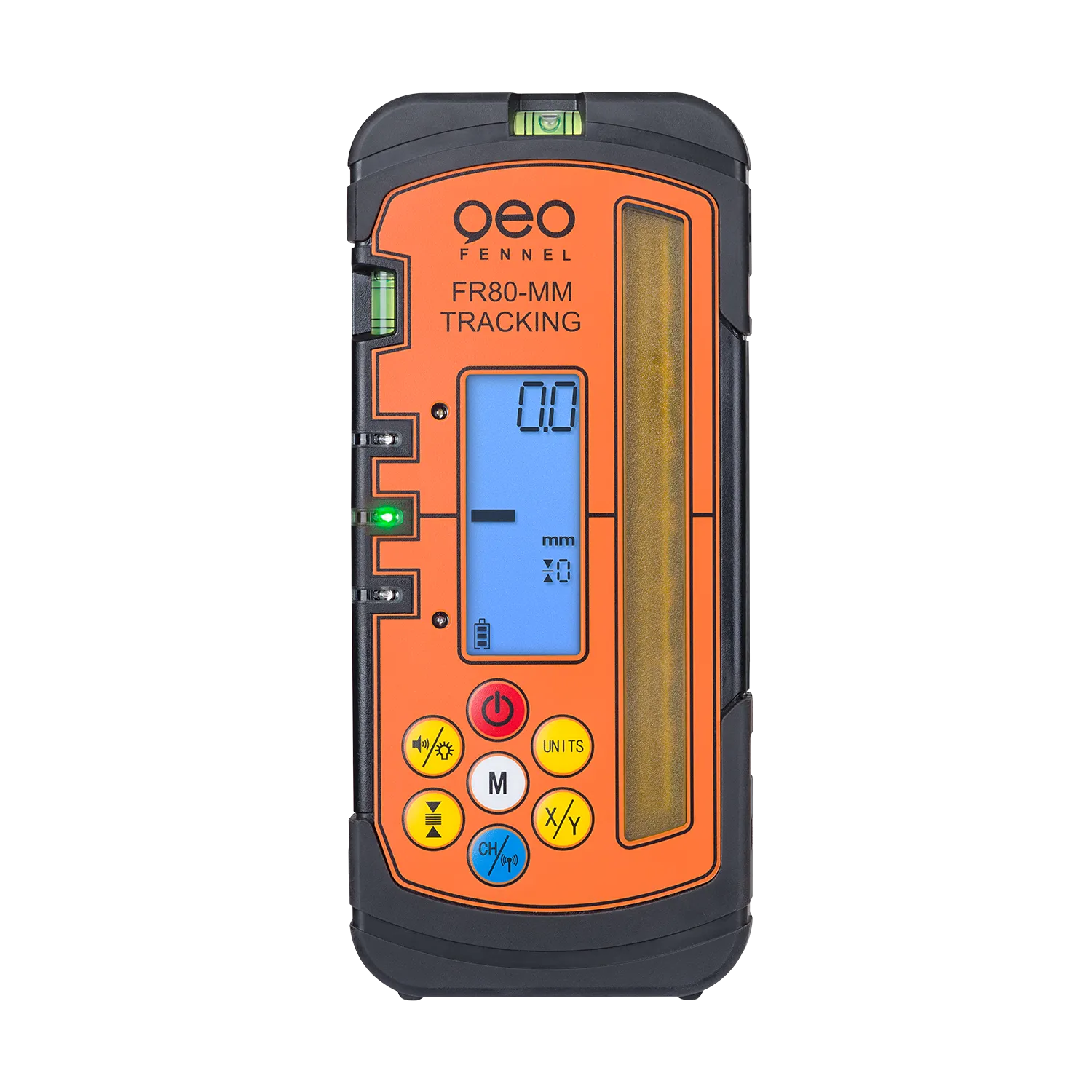

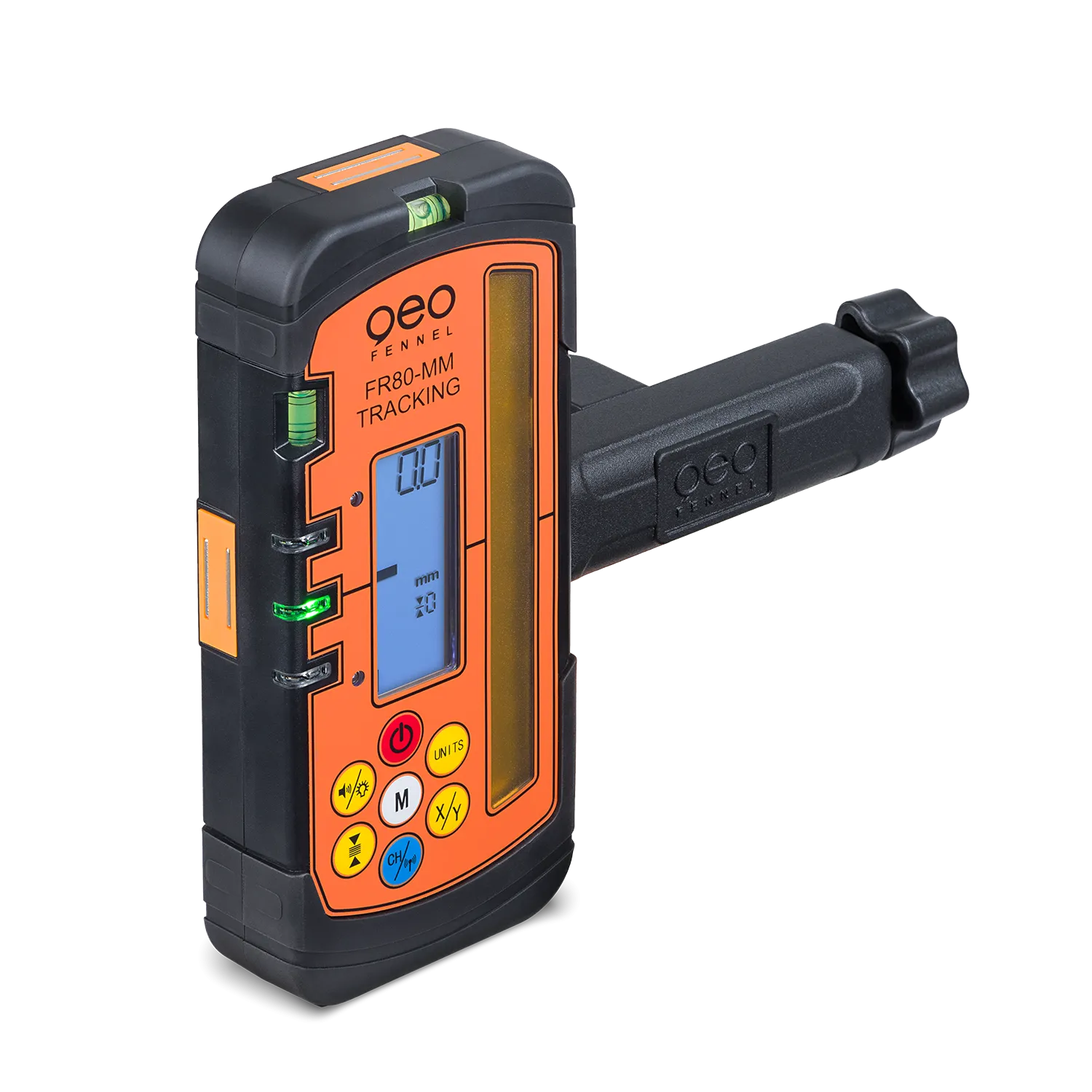

• Receiver with clamp for levelling staff
• Remote control
• Rechargeable batteries
• Charger
• Battery case for alkaline batteries
• Floor mount
• Magnetic target
• Laser glasses
• Carrying case
