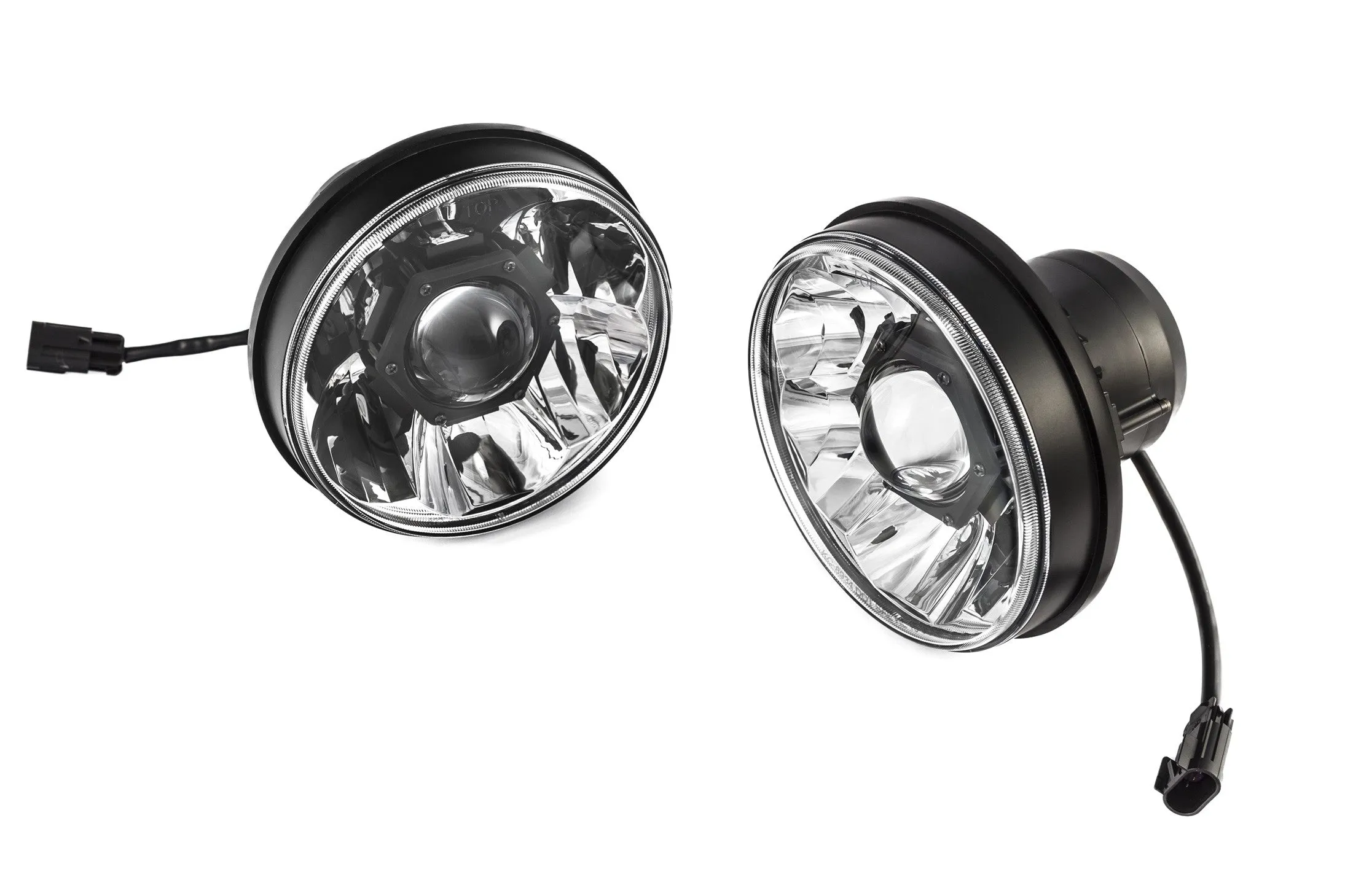

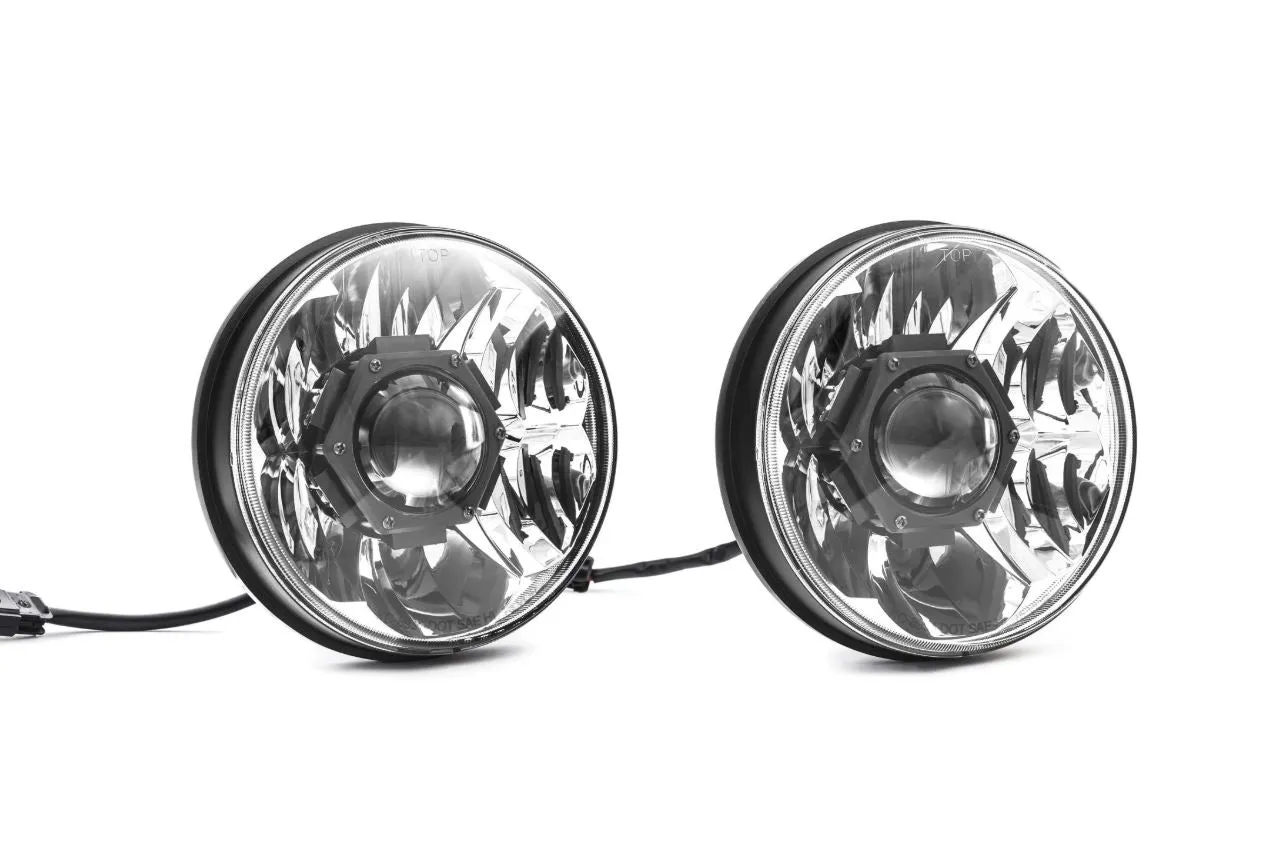

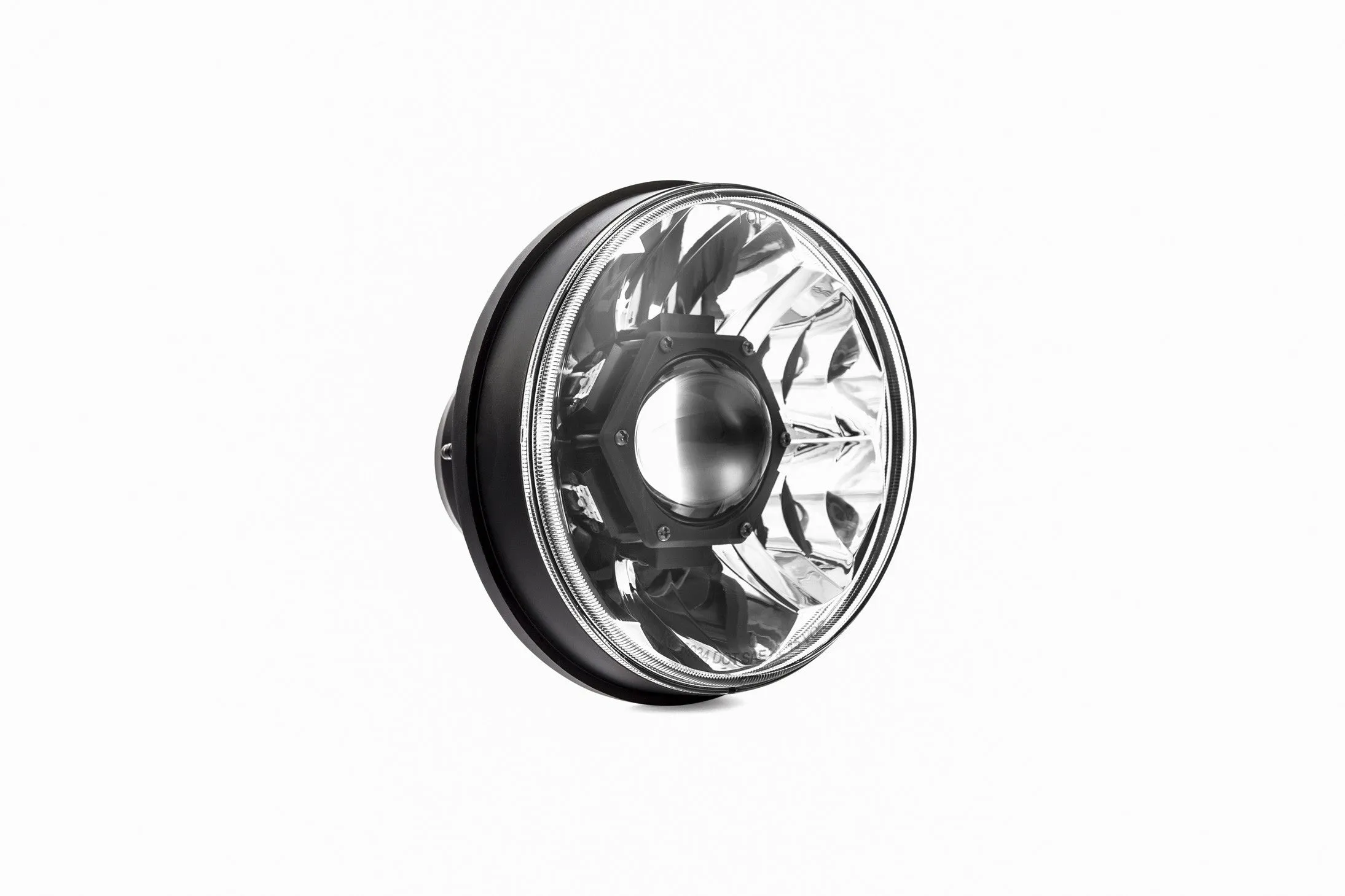

Gravity® LED Pro 7" Headlight DOT Pair Pack System

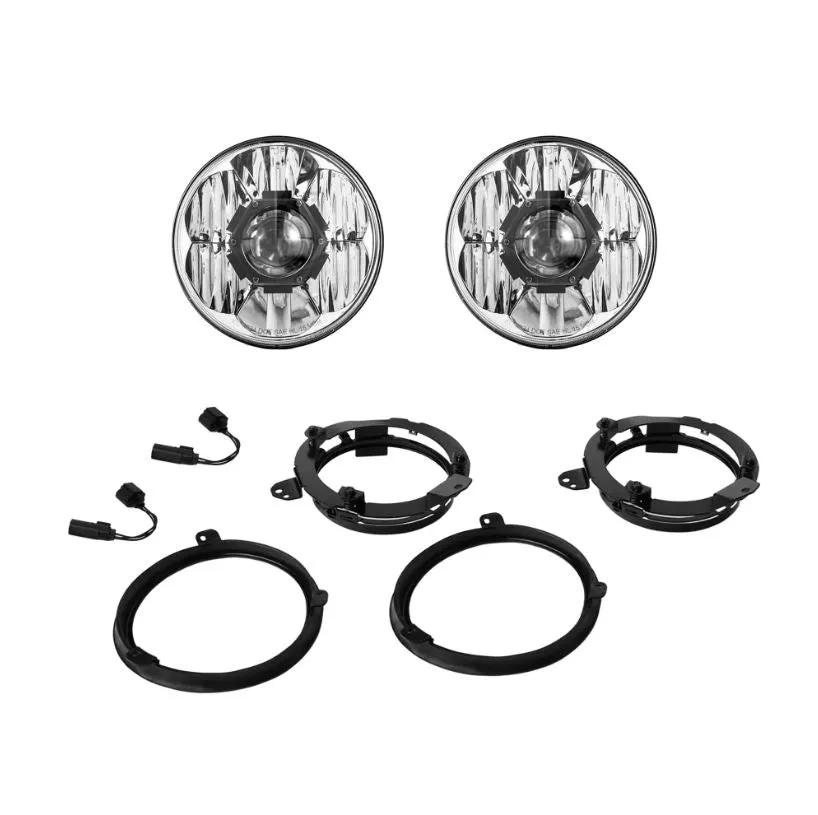

KC's Gravity® LED Pro 7" Jeep Wrangler JL and Gladiator JT Headlights feature bright CREE LEDs for DOT low/high beams on 2018-2020 JLs and JTs. Diecast aluminum housing and polycarbonate lens for optimal performance. High/Low beams with built-in DRL, and anti-flicker capacitors. These are a great upgrade over your factory halogen headlights. Includes all brackets, wire adapters, and hardware necessary for an easy install.

FEATURES

• Gravity® LED Pro 7" Headlight
• Bracket mounts into factory headlight location -Patented Gravity® Projector Optics (GPO)
• Hard Coated Polycarbonate Lens
• Precision Die-Cast Aluminum Housing
• DOT Compliant Low and High Beam with built-in Daytime Running Light
• KC Engineered Polished Reflector Optics

Fitment Note:

• Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS (PER LIGHT)

• Wattage: Low: 18W, High: 25W
• LED Bulb: CREE: XPL/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: 6.96" x 5.098"

Gravity® EXTREME OUTPUT AND EFFICIENCY

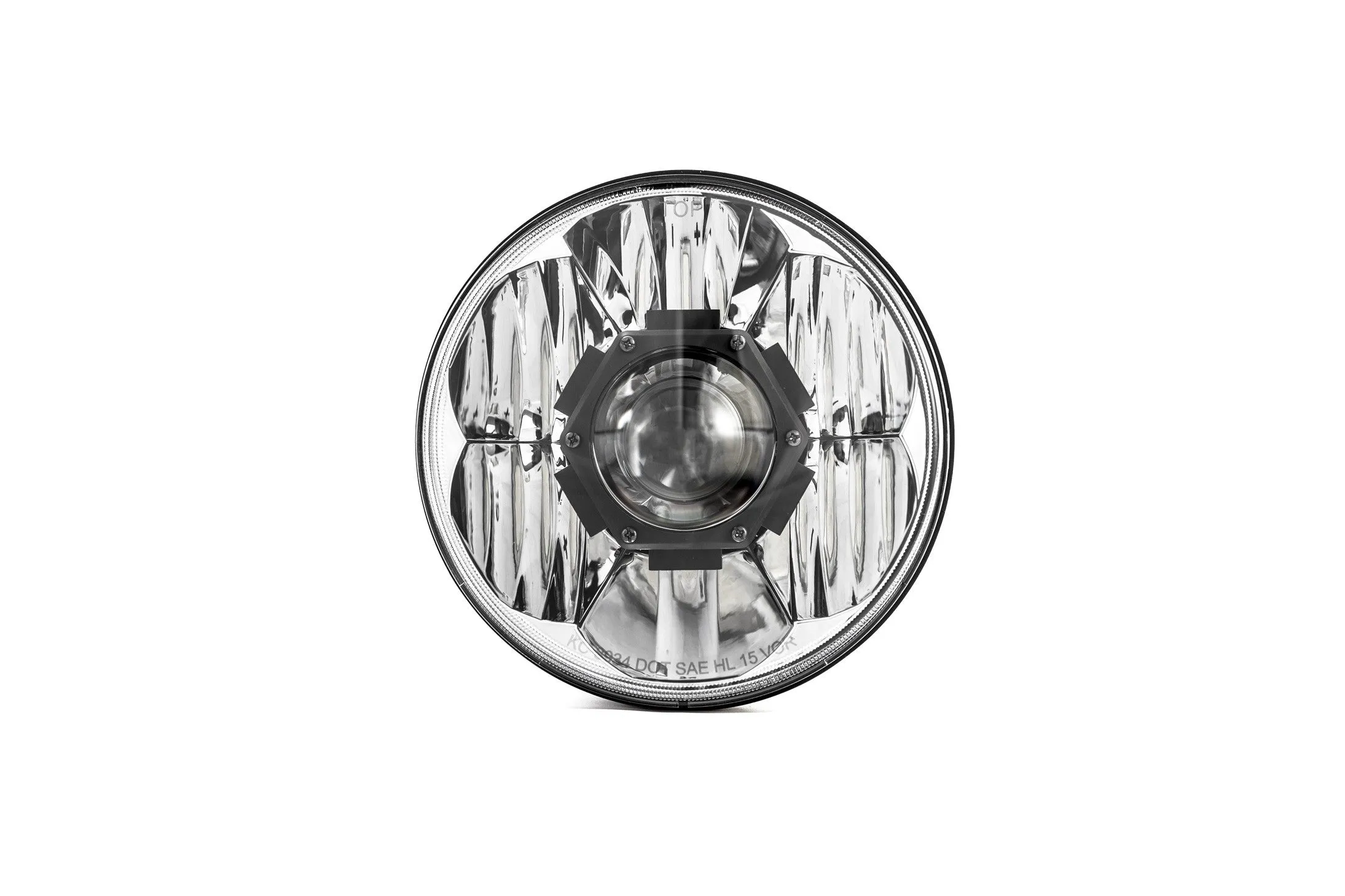

The Gravity® LED Pro 7" headlight uses KC's patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.

HIGH-PERFORMANCE REFLECTOR OPTICS

The Gravity® LED Pro 7" Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs to precision reflector optics.

HIGH/LOW/DRL BEAM FUNCTION

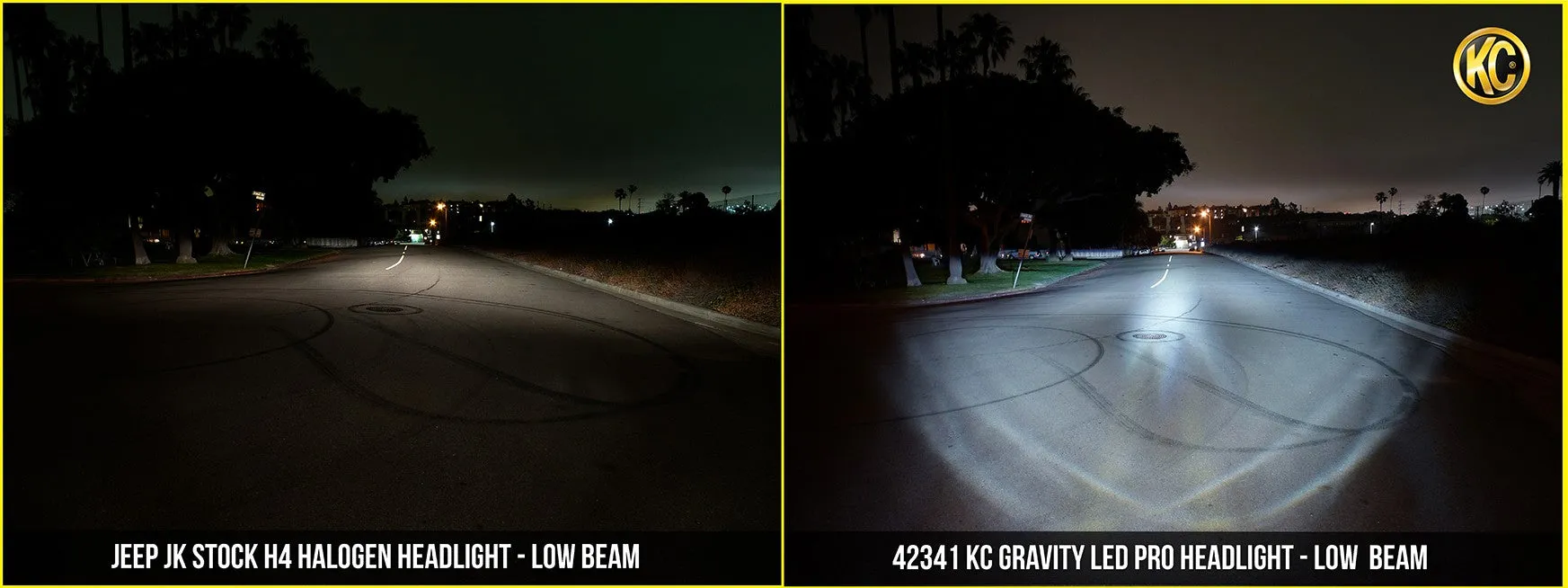

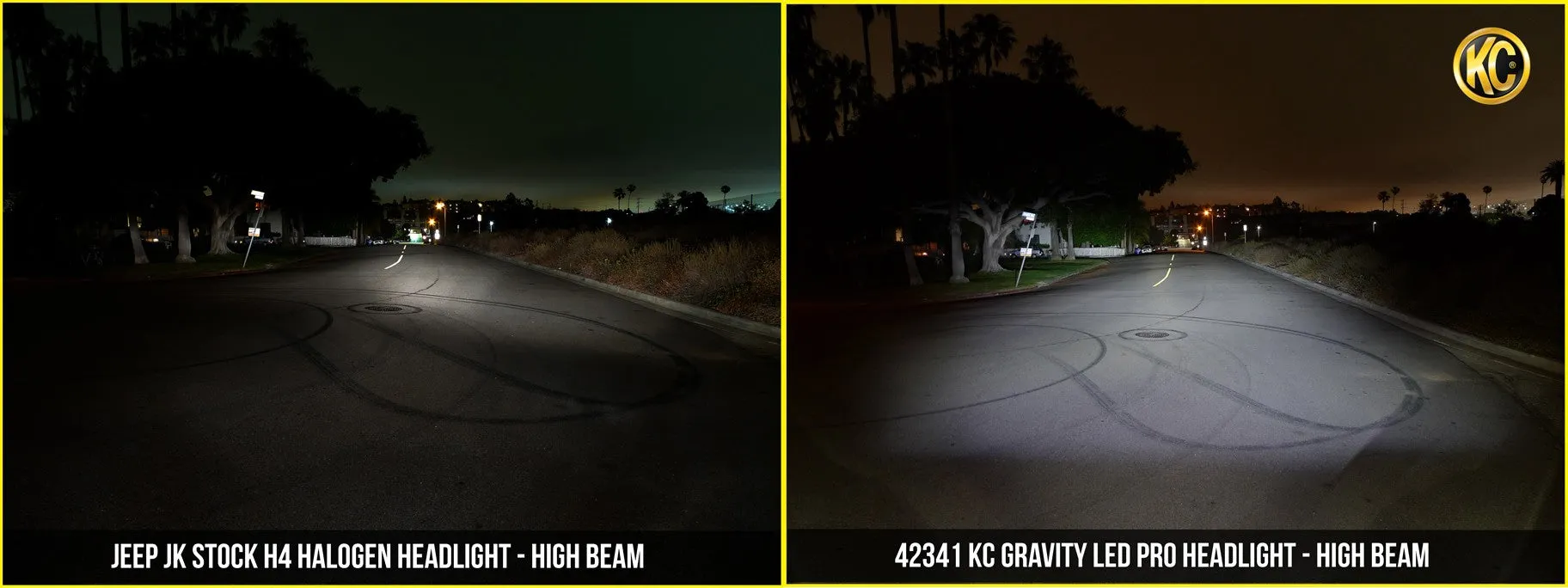

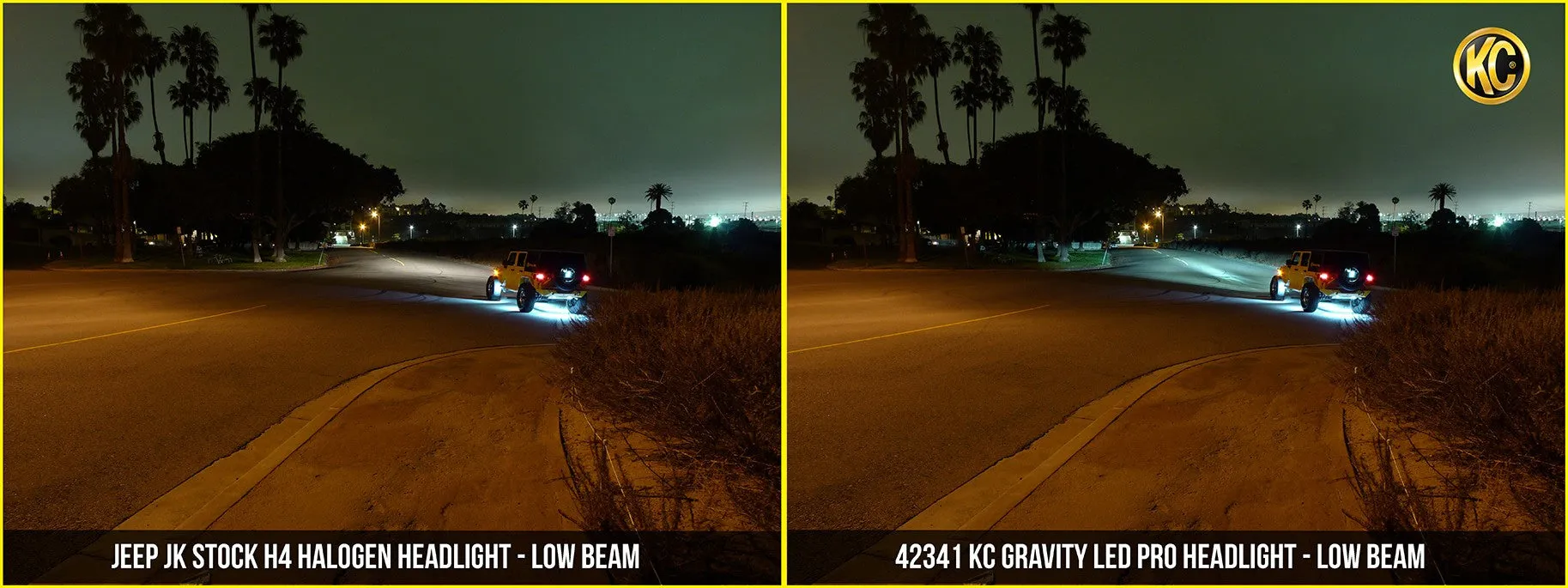

High/Low beams as well as DRL functionality comes factory installed in this KC projector headlight while greatly Improving visibility and clarity over your factory Jeep headlights.

DESIGNED FOR DURABILITY

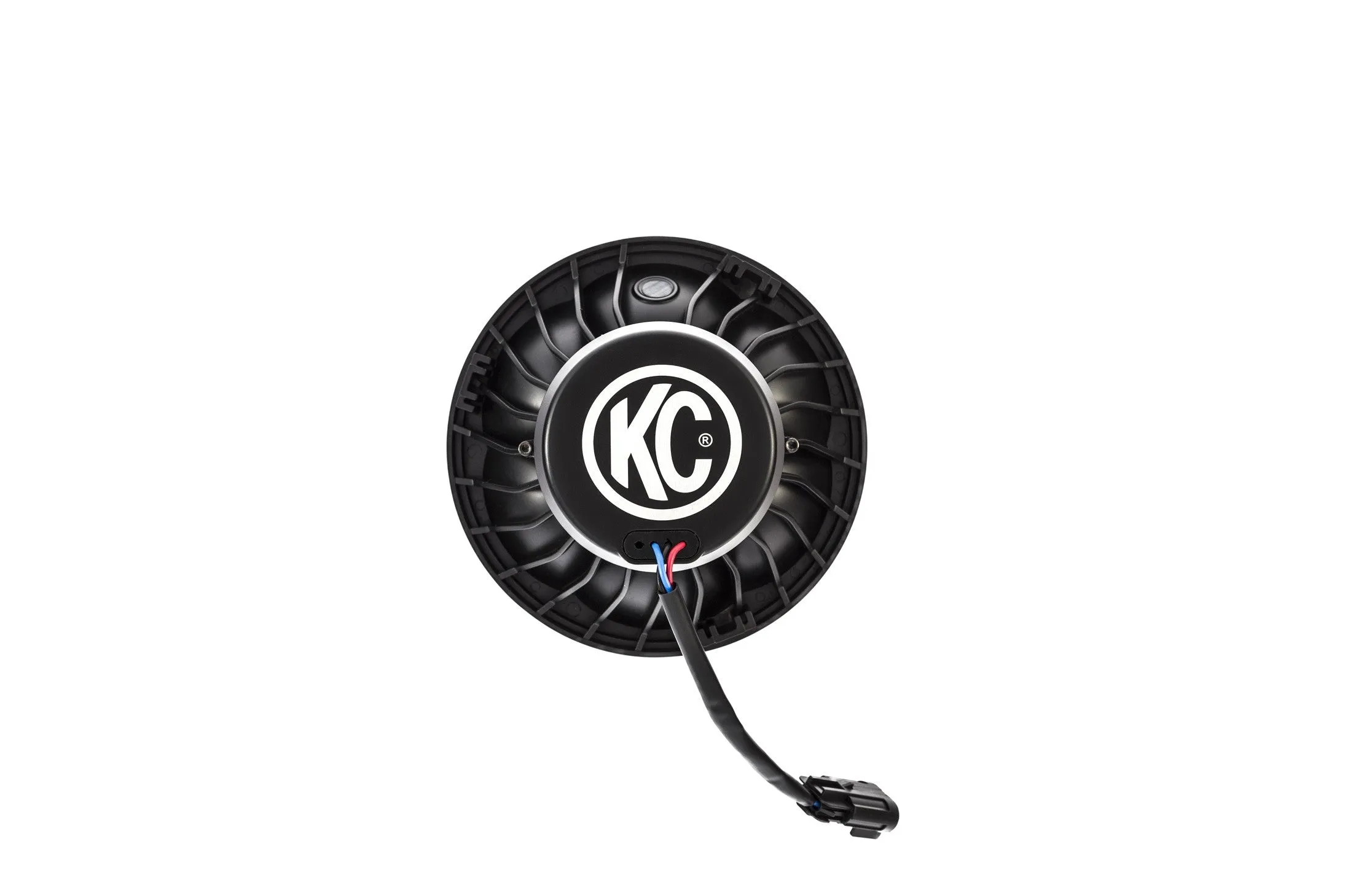

Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, which is designed to tolerate the harshest climates, terrains and conditions.
