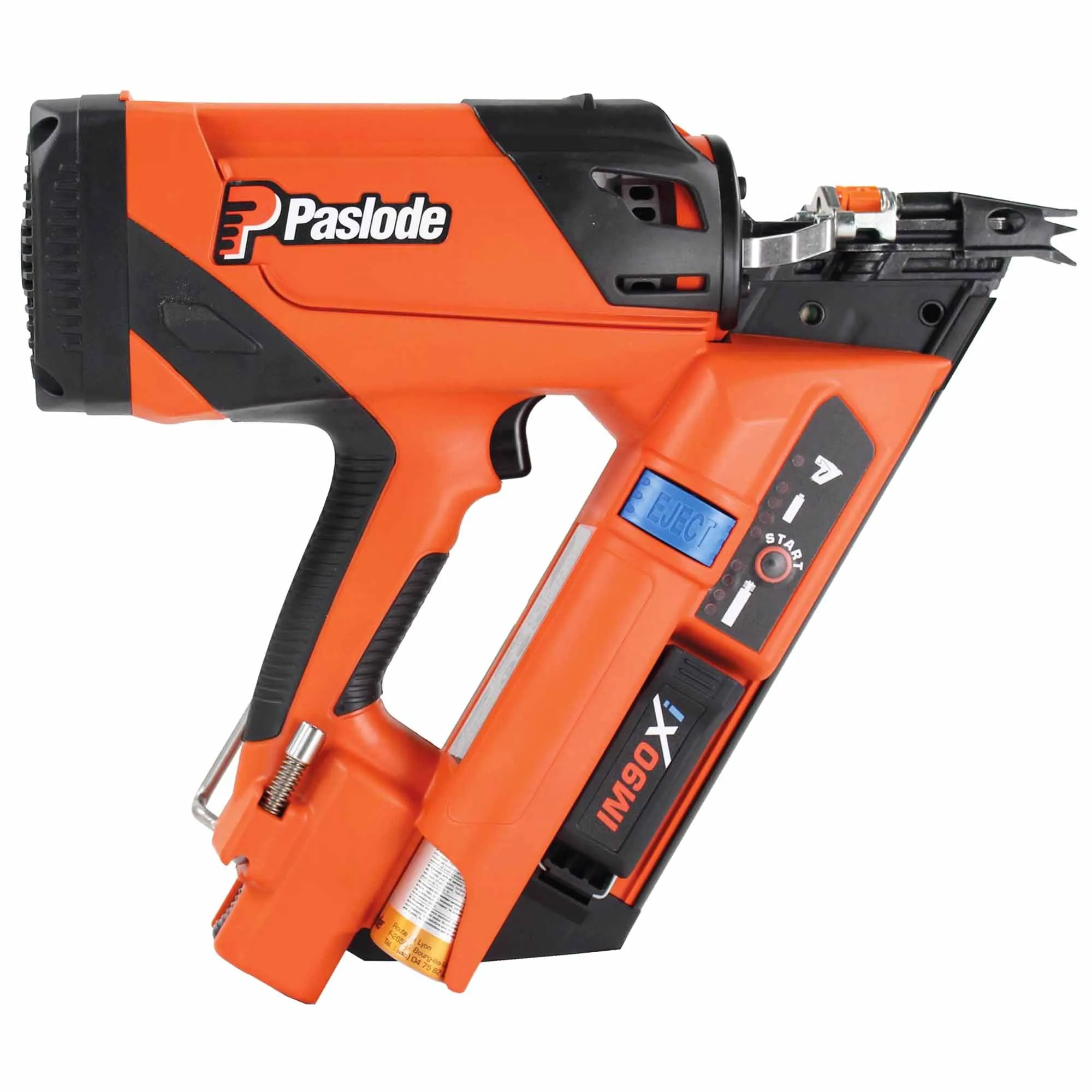

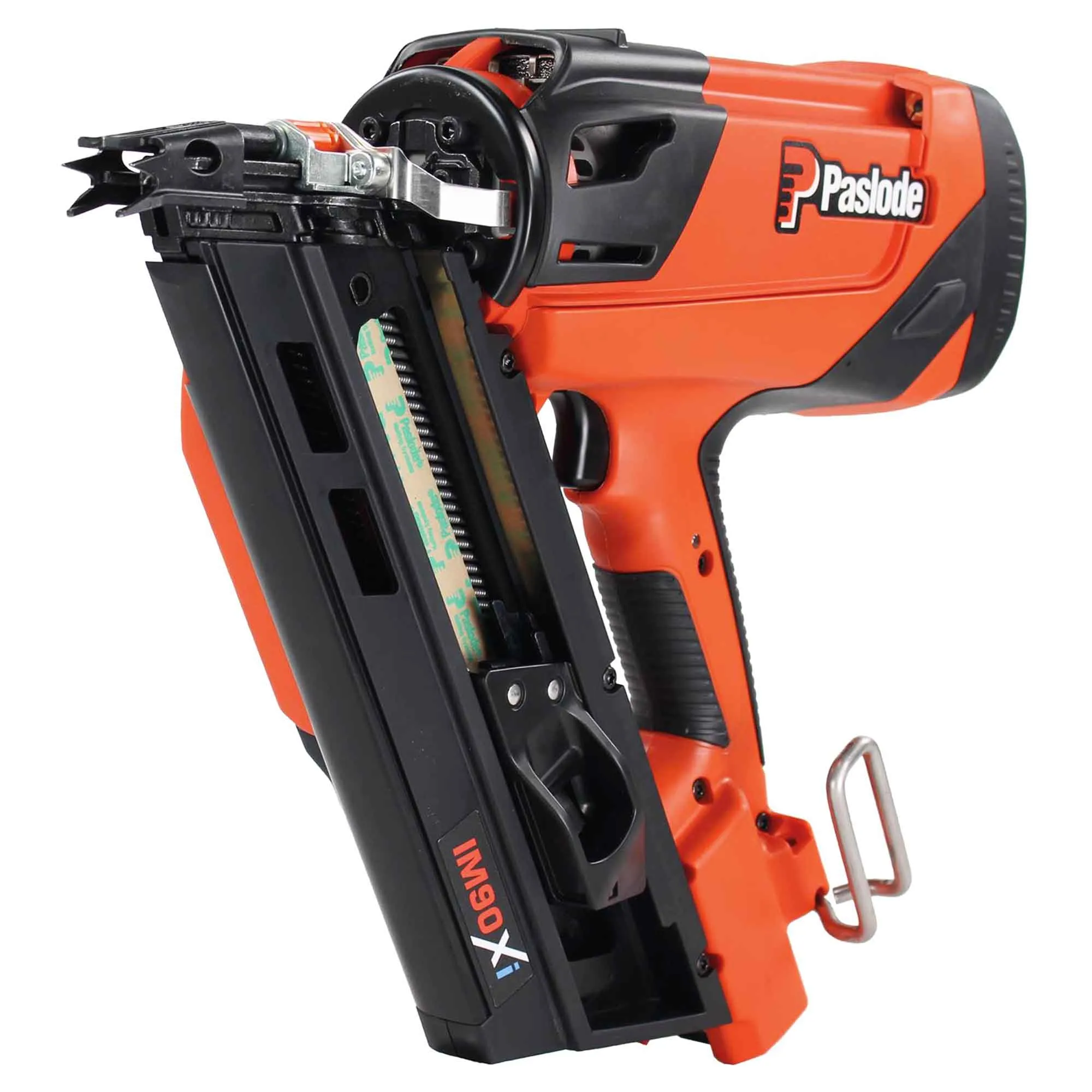

Wood Nailer Spit IM90Xi you have the most reliable, comfortable and high performance battery nailing system for carpenters and roofing applications. Gas/battery nailer for nails taped on 34 solid paper, 50 to 90 mm long

• Innovative Start & Go system allows up to 25% more hardware per battery charge
• Gas and battery level indicators: tool functionality always under control
• Extremely fast battery charging: 13,000 nails fixed with fully charged battery (90 min.)
• High performance even at low temperatures: Works up to -15C
• The best weight/power ratio
• Reduced pressure to activate nailing mechanism, less fatigue
• Toothed tip, easy to shoot in oblique
• Depth regulator for suitable nail filling
• Non-slip rubberized handle for a firm and comfortable grip

MAIN APPLICATIONS

• Boards or beads for wooden roofs
• Joints between beams/Wooden structures
• Assembly of frame structures
• Formwork made of wood
• Flat roofing Panelling Wooden floors
• Wooden fences Planks, tapped boards

TECHNICAL SPECIFICATIONS

• Fixing length range (mm) 50°/90°
• Weight (EPTA) 3.6 kg
• Depth 376 x - x 121
• Power 105 J

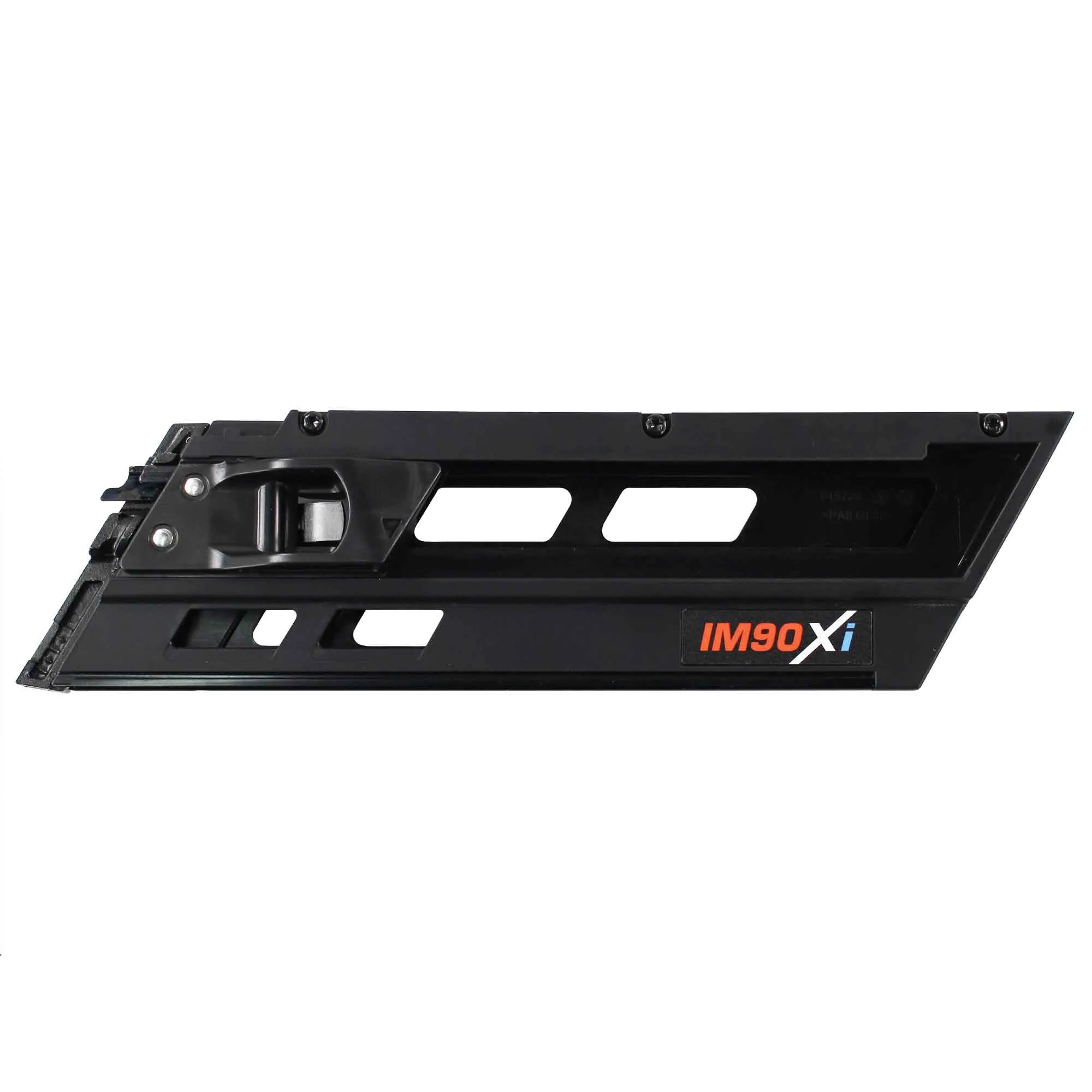

• Magazine capacity 47 fixing (i)
• Number of fixings for gas cartridge 1250 (-5 °C) shots
• Number of hardware per battery charge 13000
• Battery type Lithium -
• Battery charging time 90°
• Operating temperature -15 °C / 49 °C
• Rate fixing/hour 1000 fixing (i)
• Cadence fixing/second 2-3 fixing (i)
• Fastening type Paslode nails in rod
• Angle of inclination 34 inch
• Full Sequential Activation Mode
• Peak sound pressure (EN 12549) LpCpeak 135 dB(C)
• Sound pressure level (EN 12549) Lpa,1s,1m 95 dB(A)
• Vibration (EN ISO 8662-11) hav 3.9 m/s²

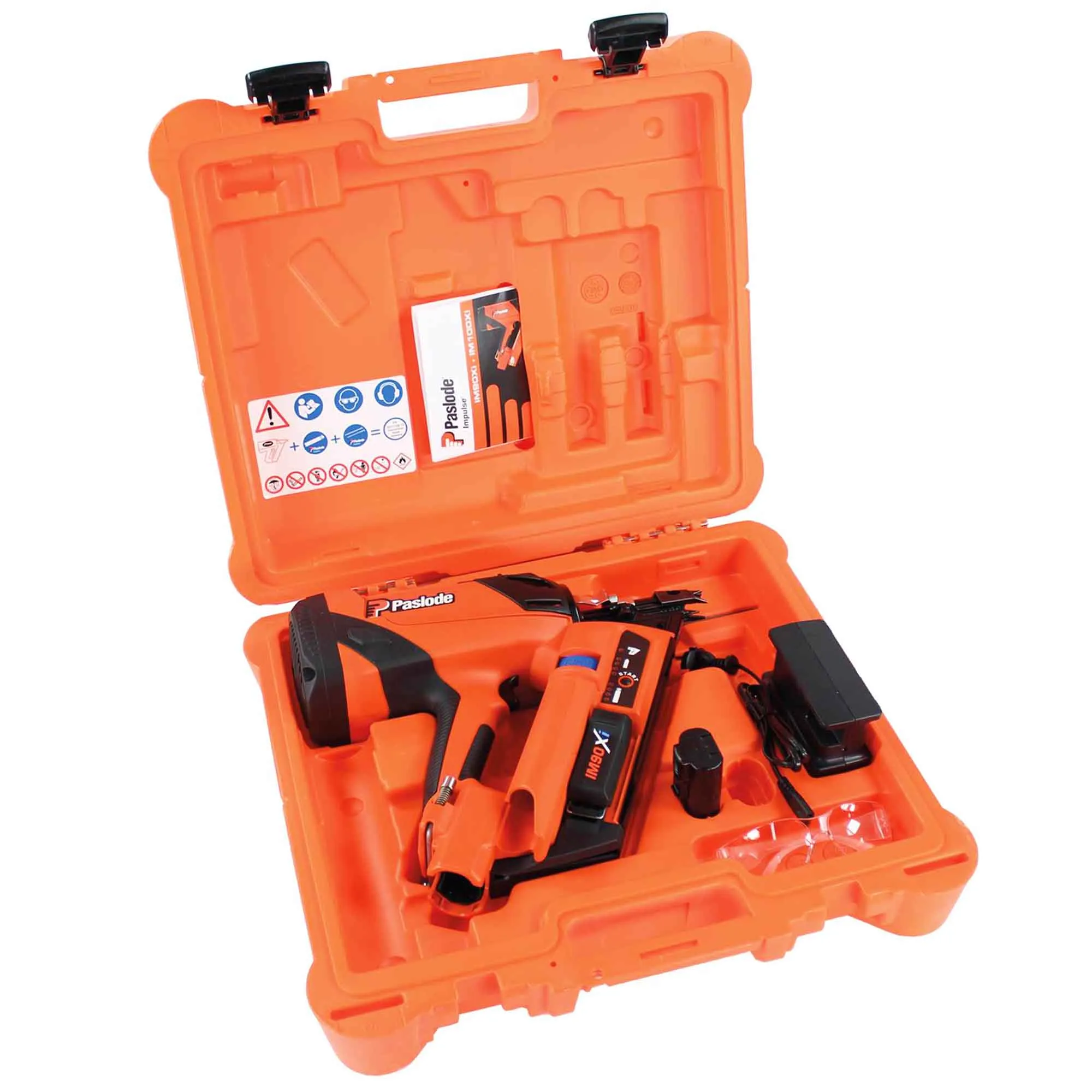

ACCESSORIES INCLUDED

• Battery
• Charger
• Case
