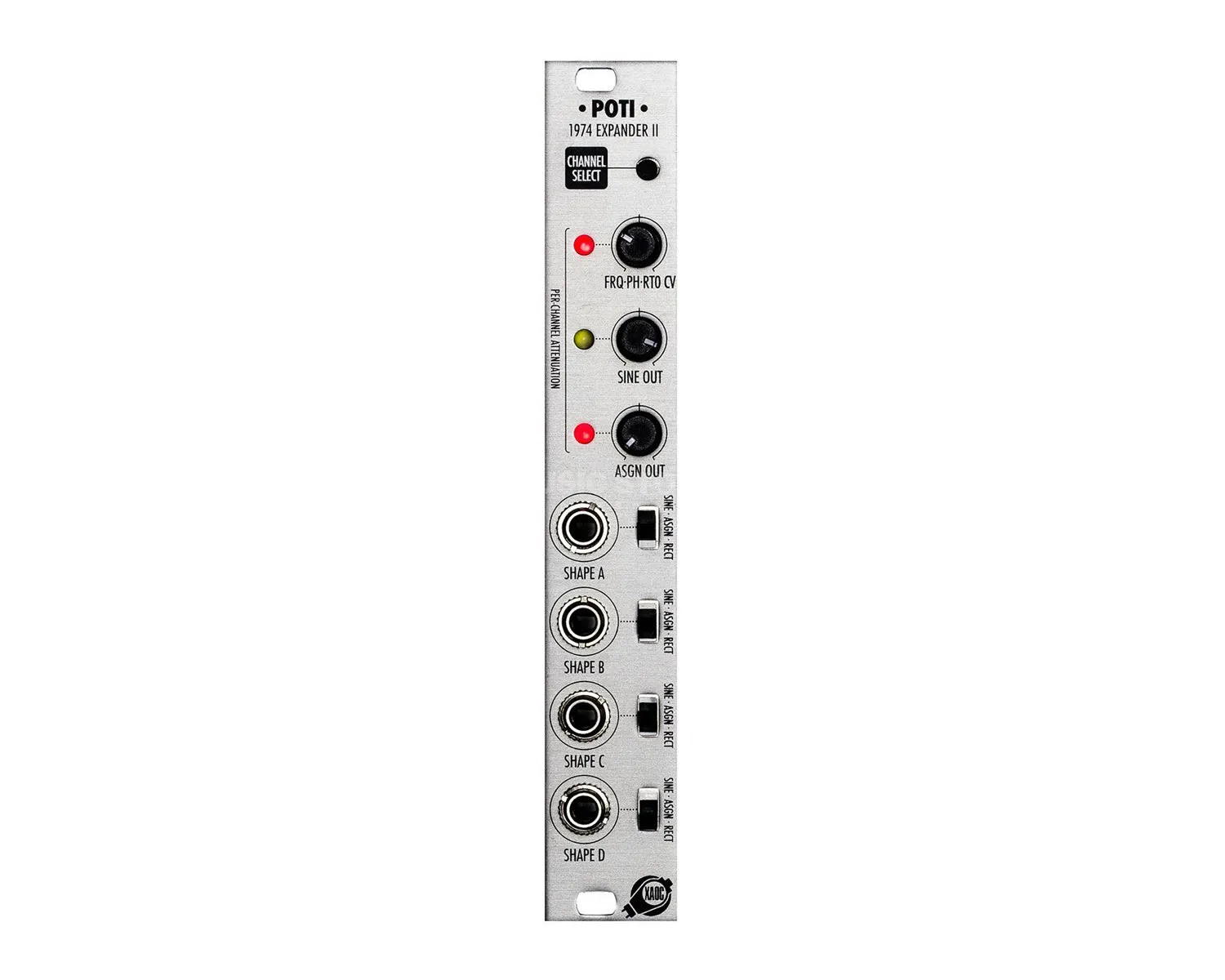

The XAOC Devices Poti II is an expansion module for the quad LFO Batumi II.
This expander complements the main module with four CV inputs for modulating the waveform of sine or assign or square. It acts as an attenuator for the CV inputs of Batumi II and can attenuate the outputs of sine and assign. This is useful if you want Batumi II to modulate itself with Poti II to get more complex control voltages. The module is designed in such a way that your settings are retained after you turn the modular system off.

Features:

* Per-channel input and output attenuation for the SINE and ASSGN outputs
 * Per-channel shape modulation with switchable destination (wave folding, shape switching, PWM)
 * Stores settings during a power cycle
 * LED indication of the discrepancy between the stored setting and current pot position
 * 4HP
 * 10/-0mA from Batumi II

Product Specs

• Item Number: 30259
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Poland
• MPN: XAOC-POTII
• Modular Grid: Eurorack
• Dimensions: 4 HP 32 mm deep
• Power: 10 mA 12V 0 mA -12V 0 mA 5V
